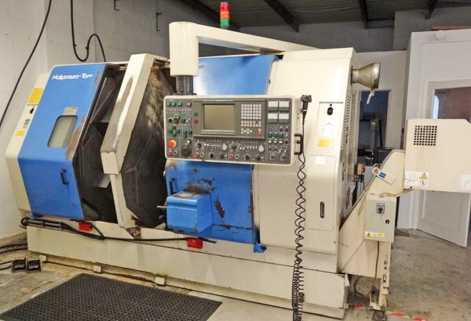

NAKAMURA TW-20 DUAL SPINDLE DUAL TURRET CNC LATHE

Year of manufacture: 1996-1997 estimated,
Fanuc Series 16-TTA CNC Control,
Chuck Size: 210 mm (8.0")
Max Swing: 270 mm (10.63")
Max Turning Length: 192 mm (7.56")
Bar Capacity: 50.8 mm (2.0")
X1- Axis Travel: 195 mm (7.68")
X2- Axis Travel: 195 mm (7.68")
Z1- Axis Travel: 265 mm (10.43")
Z2- Axis Travel: 762 mm (30.70")
Main Spindle Speed: 50 - 4,500 RPM
Main Spindle Power: 20 HP
Main Spindle Bore: 65 mm (2.56")
Second Spindle Speed: 50 - 4,500 RPM
Second Spindle Power: 20 HP
Second Spindle Bore: 65 mm (2.56")
Tool Turret (L): 12 Tools
Tool Turret (R): 12 Tools
Full Load: 142 Amp
Approx Machine Dimensions (l x w x h): 3,430 mm x 2,082 mm x 2,133 mm
Approx Machine Weight: 7,800 kg
EQUIPPED WITH:
Swarf conveyor
5 off axial driven tool holders
5 off radial driven tool holders
Loads of additional turret tooling
Short series magazine bar feed unit
Part catcher

This item is located in the United Kingdom

Price: 18,000.00 GBP (OFFERS CONSIDERED)

Please quote Ref No: 200012 in all correspondance
